Colin V32.9 Code (2026)

#include <Wire.h>
#include <LiquidCrystal_I2C.h>
#include <EEPROM.h>
//#include <DHT11.h>
#include <Versatile_RotaryEncoder.h>


/* Colin the Grinder Project
© 2023-2026 George Crawford and Kevin Davy

ElectroKev.com
V32.9 Final
Release Notes:

V32.9===========================================================
NEW: Last grind value stored

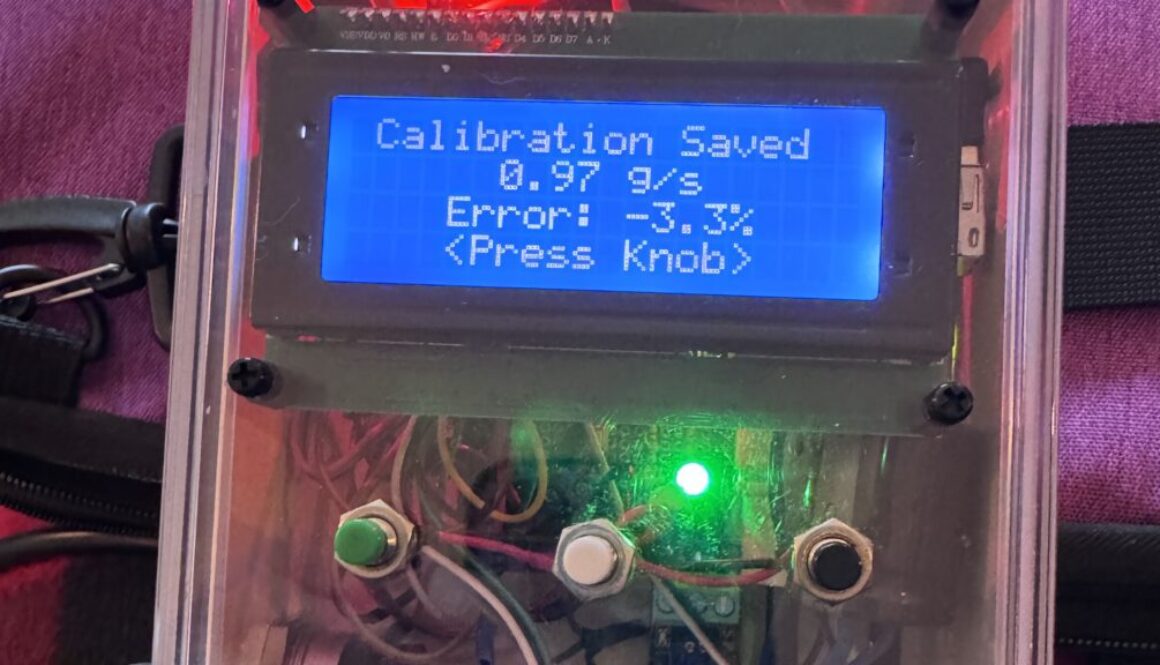

NEW: Quick Caibration menu option for last saved grind
NEW: Calibration error margin shown as a percentage
Aeropress/V60 mode no longer counts towards descale count
Aeropress Mode Changed to Aeropress/V60 Mode
Descale interval can now be configured +/- resetting the counter.
Grinding screen modified to reflect 'Remaining Grams'
DHT11 Library removed so RAM not exceeded/improve stability
Temp sensor algorithn calibrated for accuracy in steam mode to 140c
Calibration Bug fixed between grind modes


V32.7===========================================================
- NEW MODE SYSTEM:
 - AEROPRESS MODE (AP)
 - FREERUN MODE (FR)
 - TIMED GRIND MODE (TG)

- Prohibit grind settings changes unless in Timed Grind (TG) Mode
- NEW Edit total grams memory for total grinds correction
- NEW Live sensor temperature on main screen
- NEW Settings Menu
- NEW Progress bar during grinding
- NEW Customisable Descale Reminders with built in Coffee Counter
- Full Automated Calibration Mode
- Adjustable Calibration Duration (Defaults to optimum 10 second)
- Improved manual calibration overide
- Aeropress Calibration Function
- Simplified output display - No longer time dependent.
- 'Hold to Start' converted to 'Single Click' to Start
- Confirmation of output screen added
- Grind value saved on confirmation screen rather than after grinding (allows change to next grind before reboot without active grinding)
- Cancel Grinding function added before and during grind
- Independent processing timing code for timing the grind - eliminated time drift
- Relay soft start function added
- 1/2 second grind changed to 1 GRAM grind.
- Fixed intermittent responsiveness rotary encoder
- Improved accelerated encoder function for value setting
- Freerun grind output monitoring
- TG and AP mode require a valid calibration before being allowed to run
- Main screen live temp display
- Main screen mode indicator
- Added visual moving graphic on line 2 in TG mode
- Add <Return to Home> after grinding in TG mode
- Add USB protection for pull up resistor in temperature mode
- Optimise temperature calculation algorithm for 10k (Variable) + 330 Ohm (Fixed) Sensor
- Remove the double 'gg' bug when on live grinding screen
- Update welcome screen 1
- Update Totals Screen to show Total Grinds, Total until descale required and Total 18g shots
- Removed flicker in AP/FR mode
- Error handling for new chips without previously saved EEPROM values
- Bug fix - Correct screen initialised
- Fix several other small bugs
==============================================================
** Top Button = Settings Menu **
** Green Button = Mode selector **
** White Button = Cancel in all screens other than main menu where it acts as 1 Gram Grind Button **
** Black Button = Hard Reset (Should no longer be required in general use) **
==============================================================

*/


//DHT11 dht11(7);

int grindMode = 0;
bool greenButtonWasPressed = false;

const float versionNumber = 32.9;
const int clearEEPROMButtonPin = 2;
const int clearHoldDuration = 3000;

// Define the pin for the thermistor
const int thermistorPin = A3;

// Define the value of the resistor
const float resistorValue = 12500.0;

// Define the parameters for the Steinhart-Hart equation
// NEVER EVER EVER EVER EVER CHANGE THE VALUES BELOW
const float A = 0.001129148;
const float B = 0.000195125;
const float C = 0.0000000996741;
// higher the co e the lower the temp
// lower the co e the highewr the temp

float adjustStopMilkC;
const int buttonPin = 3;
const int settingsButton = 9;
const int instantGrindButtonPin = 6;
const int ledPin = 4;
const int relayPin = 5;
const int powerLightPin = 10;
const uint8_t i2cAddr = 0x27;
const int pauseHoldDuration = 1;

bool offBackFlash = false;
bool countdownStarted = false;
bool isPaused = false;
bool showTemperature = false;

unsigned long pauseButtonStartTime = 0;
unsigned long clearButtonStartTime = 0;

float totalGramsStored;
float grinding;
float totalGrams;
float gramsPerSecond;

int heatMilkC = 35;
int stopMilkC = 63;

float grindSpeed;
float grindSpeedExceeded = 20;
float gpsSpeedExceeded = 35;
float tempCelsius;

unsigned long lastCaterpillarMove = 0;
unsigned long lastCaterpillarRun = 0;

const unsigned long caterpillarMoveInterval = 120;
const unsigned long caterpillarRunInterval = 5500;

bool caterpillarActive = false;
int caterpillarPos = 0;

// Main screen temperature refresh
unsigned long lastTempUpdate = 0;
const unsigned long tempUpdateInterval = 500;

float aeropressGrams = 15.0;
#define descaleIntervalMemory 50
#define descaleCounterMemory 60

float lastGrindGrams = 0.0;
float lastGrindSeconds = 0.0;
bool hasLastGrind = false;

int descaleInterval = 100;       // 0 = Off
int descaleCoffeeCount = 0;
#define apMemory 40

#define LCD_COLS 20
#define LCD_ROWS 4
#define EEPROM_ADDRESS 0
#define grindTimeMemory 10
#define gpsMemory 20
#define finalDrinkTempSave 30
bool knobWasRotatedWhilePressed = false;

LiquidCrystal_I2C lcd(i2cAddr, LCD_COLS, LCD_ROWS);

#define clk A0
#define dt A1
#define sw 11

Versatile_RotaryEncoder *versatile_encoder;

void createProgressChars() {
  byte block1[8] = {
    B10000,
    B10000,
    B10000,
    B10000,
    B10000,
    B10000,
    B10000,
    B10000
  };

  byte block2[8] = {
    B11000,
    B11000,
    B11000,
    B11000,
    B11000,
    B11000,
    B11000,
    B11000
  };

  byte block3[8] = {
    B11100,
    B11100,
    B11100,
    B11100,
    B11100,
    B11100,
    B11100,
    B11100
  };

  byte block4[8] = {
    B11110,
    B11110,
    B11110,
    B11110,
    B11110,
    B11110,
    B11110,
    B11110
  };

  lcd.createChar(1, block1);
  lcd.createChar(2, block2);
  lcd.createChar(3, block3);
  lcd.createChar(4, block4);

byte copyrightChar[8] = {
  B01110,
  B10001,
  B10101,
  B10111,
  B10101,
  B10001,
  B01110,
  B00000
};

lcd.createChar(0, copyrightChar);

}


void setup() {

  Wire.begin();
  Wire.setClock(400000L);
  randomSeed(analogRead(A2));

  EEPROM.get(apMemory, aeropressGrams);
  if (isnan(aeropressGrams) || aeropressGrams < 1.0 || aeropressGrams > 50.0) {
  aeropressGrams = 15.0;
  EEPROM.put(apMemory, aeropressGrams);
}

// safety default
if (aeropressGrams <= 0 || aeropressGrams > 50) {
  aeropressGrams = 15.0;
}

  versatile_encoder = new Versatile_RotaryEncoder(clk, dt, sw);
  versatile_encoder->setHandleRotate(handleRotate);
  versatile_encoder->setHandlePress(handlePress);
  versatile_encoder->setHandlePressRelease(handlePressRelease);
  versatile_encoder->setHandleLongPress(handleLongPress);
  versatile_encoder->setHandlePressRotate(handlePressRotate);
  versatile_encoder->setHandlePressRotateRelease(handlePressRotateRelease);

  lcd.init();
  lcd.begin(20,4);
  lcd.backlight();
  lcd.setBacklight(255);
createProgressChars();
  pinMode(buttonPin, INPUT_PULLUP);
  pinMode(sw, INPUT_PULLUP);
  pinMode(instantGrindButtonPin, INPUT_PULLUP);
  pinMode(ledPin, OUTPUT);
  pinMode(relayPin, OUTPUT);
  pinMode(powerLightPin, OUTPUT);
  pinMode(clearEEPROMButtonPin, INPUT_PULLUP);
  pinMode(settingsButton, INPUT_PULLUP);

  EEPROM.get(EEPROM_ADDRESS, totalGramsStored);
  EEPROM.get(grindTimeMemory, grinding);
  EEPROM.get(gpsMemory, gramsPerSecond);
  EEPROM.get(finalDrinkTempSave, stopMilkC);
  EEPROM.get(descaleIntervalMemory, descaleInterval);
EEPROM.get(descaleCounterMemory, descaleCoffeeCount);

//=============
if (isnan(totalGramsStored) || totalGramsStored < 0 || totalGramsStored > 1000000) {
  totalGramsStored = 0.0;
  EEPROM.put(EEPROM_ADDRESS, totalGramsStored);
}

if (isnan(gramsPerSecond) || gramsPerSecond < 0 || gramsPerSecond > 20.0) {
  gramsPerSecond = 0.0;
  EEPROM.put(gpsMemory, gramsPerSecond);
}

if (isnan(grinding) || grinding < 0 || grinding > 120.0) {
  grinding = 0.0;
  EEPROM.put(grindTimeMemory, grinding);
}

//=============

if (descaleInterval != 0 &&
    descaleInterval != 5 &&
    (descaleInterval < 100 || descaleInterval > 500 || descaleInterval % 50 != 0)) {
  descaleInterval = 100;
  EEPROM.put(descaleIntervalMemory, descaleInterval);
}

if (descaleCoffeeCount < 0 || descaleCoffeeCount > 10000) {
  descaleCoffeeCount = 0;
  EEPROM.put(descaleCounterMemory, descaleCoffeeCount);
}

  analogWrite(powerLightPin, 10);

  // change this to Non Pullup for built in USB protection - Not done yet as fails no sensor check.
  pinMode(thermistorPin, INPUT_PULLUP);

  /*int humidity = dht11.readHumidity();
  delay(500);
  int temperature = dht11.readTemperature(); */

lcd.init();
lcd.clear();

// --- LINE 1 ---
lcd.setCursor(2, 1);
lcd.write(byte(0));
lcd.print(" ElectroKev.com");

// --- LINE 3 ---
lcd.setCursor(0, 3);
//lcd.print(temperature);
//lcd.print("C");

lcd.setCursor(8, 3);
lcd.print("v");
lcd.print(versionNumber, 1);

lcd.setCursor(17, 3);
//lcd.print(humidity);
//lcd.print("%");

delay(3000);

// --- SECOND SCREEN ---
lcd.clear();

lcd.setCursor(7, 0);
lcd.print("Totals:");

// -------- GROUNDS --------
lcd.setCursor(0, 1);
lcd.print("Grounds:");

char buffer1[10];
sprintf(buffer1, "%ld g", (long)totalGramsStored);
lcd.setCursor(20 - strlen(buffer1), 1);
lcd.print(buffer1);

// -------- DESCALE --------
lcd.setCursor(0, 2);

if (descaleInterval == 0) {
  char offText[] = "Off";
  lcd.print("Descale:");
  lcd.setCursor(20 - strlen(offText), 2);
  lcd.print(offText);
} else {
  int coffeesRemaining = descaleInterval - descaleCoffeeCount;
  if (coffeesRemaining < 0) coffeesRemaining = 0;

  lcd.print("Until Descale:");

  char buffer2[6];
  sprintf(buffer2, "%d", coffeesRemaining);
  lcd.setCursor(20 - strlen(buffer2), 2);
  lcd.print(buffer2);
}

// -------- TOTAL COFFEES --------
lcd.setCursor(0, 3);
lcd.print("Total Coffees:");

int total18Coffee = totalGramsStored / 18;

char buffer3[6];
sprintf(buffer3, "%d", total18Coffee);
lcd.setCursor(20 - strlen(buffer3), 3);
lcd.print(buffer3);

delay(5000);

  updateScreen();
}

void loop() {

 if (versatile_encoder->ReadEncoder()) {
  if (grindMode == 0) {
    updateGramsOnly();
  } else {
    //updateScreen();
  }
}
if (millis() - lastTempUpdate >= tempUpdateInterval) {
  lastTempUpdate = millis();
  updateMainTempOnly();
}

updateSleepingDots();

if (digitalRead(buttonPin) == LOW && !greenButtonWasPressed) {
  greenButtonWasPressed = true;
  greenButtonPressed();
}

if (digitalRead(buttonPin) == HIGH) {
  greenButtonWasPressed = false;
}

  if (digitalRead(clearEEPROMButtonPin) == LOW) {
    masterReset();
  }

if (digitalRead(instantGrindButtonPin) == LOW) {
  oneGramGrind();
}

if (digitalRead(settingsButton) == LOW) {
  settingsMenu();
}

//updateModeIndicator();
}

void updateGramsOnly() {
  lcd.setCursor(7, 0);
  lcd.print("      ");   // clears old value only

  lcd.setCursor(7, 0);
  lcd.print(totalGrams, 1);
  lcd.print(" g");
}

void updateSleepingDots() {
  if (grindMode != 0) {
    return;
  }

  unsigned long now = millis();

  const unsigned long frameInterval = 250;
  const unsigned long runInterval = 4500;

  static bool active = false;
  static int frame = 0;
  static unsigned long lastFrame = 0;
  static unsigned long lastRun = 0;

  // Shifted right by 1
  const int positions[7] = {8, 9, 10, 11, 10, 9, 8};

  if (!active && now - lastRun >= runInterval) {
    active = true;
    frame = 0;
    lastRun = now;
    lastFrame = now;

    // Clear the area used
    lcd.setCursor(8, 1);
    lcd.print("    ");
  }

  if (!active) {
    return;
  }

  if (now - lastFrame < frameInterval) {
    return;
  }

  lastFrame = now;

  // Clear previous
  lcd.setCursor(8, 1);
  lcd.print("    ");

  // Draw dot
  lcd.setCursor(positions[frame], 1);
  lcd.print(".");

  frame++;

  if (frame >= 7) {
    active = false;

    lcd.setCursor(8, 1);
    lcd.print("    ");
  }
}

void setAeropressGrams() {
  lcd.clear();

  while (digitalRead(settingsButton) == LOW) {
    delay(10);
  }

  float apValue = aeropressGrams;
  float lastDisplayed = -1;

  static int lastClkState = HIGH;
  unsigned long lastTurnTime = 0;

  lcd.setCursor(2, 0);
  lcd.print("Set AP/V60 Dose");

  lcd.setCursor(2, 3);
  lcd.print("<Press to save>");

  while (digitalRead(sw) == HIGH) {

    // --- WHITE BUTTON CANCEL ---
    if (digitalRead(instantGrindButtonPin) == LOW) {
      lcd.clear();
      lcd.setCursor(7, 1);
      lcd.print("Cancel");

      delay(800);

      while (digitalRead(instantGrindButtonPin) == LOW) {
        delay(10);
      }

      updateScreen();
      return;
    }

    int clkState = digitalRead(clk);

    if (clkState != lastClkState && clkState == LOW) {

      unsigned long now = millis();
      unsigned long turnGap = now - lastTurnTime;
      lastTurnTime = now;

      float stepSize = 0.1;

      if (turnGap < 80) {
        stepSize = 1.0;
      } else if (turnGap < 180) {
        stepSize = 0.5;
      }

      if (digitalRead(dt) != clkState) {
        apValue += stepSize;
      } else {
        apValue -= stepSize;
      }

      if (apValue < 1.0) apValue = 1.0;
      if (apValue > 50.0) apValue = 50.0;

      delay(40);
    }

    lastClkState = clkState;

    if (apValue != lastDisplayed) {
      lcd.setCursor(4, 2);
      lcd.print("Dose:            ");
      lcd.setCursor(10, 2);
      lcd.print(apValue, 1);
      lcd.print(" g");

      lastDisplayed = apValue;
    }
  }

  // Save
  aeropressGrams = apValue;
  EEPROM.put(apMemory, aeropressGrams);

  lcd.clear();
  lcd.setCursor(8, 1);
  lcd.print("Saved");

  lcd.setCursor(7, 2);
  lcd.print(aeropressGrams, 1);
  lcd.print(" g");

  delay(1200);

  while (digitalRead(sw) == LOW) {
    delay(10);
  }

  updateScreen();
}

void settingsMenu() {
  lcd.clear();

  while (digitalRead(settingsButton) == LOW) {
    delay(10);
  }

const int menuCount = 6;

const char* menuItems[menuCount] = {
  "Calibration",
  "Quick Calibration",
  "Edit Total Grams",
  "Set AP/V60 Dose",
  "Descale Reminder",
  "Cancel"
};

  int menuItem = 0;
  int topItem = 0;
  int lastMenuItem = -1;
  int lastTopItem = -1;

  static int lastClkState = HIGH;

  while (digitalRead(sw) == HIGH) {

    if (digitalRead(instantGrindButtonPin) == LOW) {
      lcd.clear();
      lcd.setCursor(7, 1);
      lcd.print("Cancel");

      delay(700);

      while (digitalRead(instantGrindButtonPin) == LOW) {
        delay(10);
      }

      updateScreen();
      return;
    }

    int clkState = digitalRead(clk);

    if (clkState != lastClkState && clkState == LOW) {

      if (digitalRead(dt) != clkState) {
        menuItem++;
      } else {
        menuItem--;
      }

      if (menuItem >= menuCount) menuItem = 0;
      if (menuItem < 0) menuItem = menuCount - 1;

      if (menuItem < topItem) {
        topItem = menuItem;
      }

      if (menuItem > topItem + 2) {
        topItem = menuItem - 2;
      }

      if (menuItem == 0) {
        topItem = 0;
      }

      delay(120);
    }

    lastClkState = clkState;

    if (menuItem != lastMenuItem || topItem != lastTopItem) {
      lcd.clear();

      lcd.setCursor(6, 0);
      lcd.print("Settings");

      for (int i = 0; i < 3; i++) {
        int itemIndex = topItem + i;

        if (itemIndex < menuCount) {
          lcd.setCursor(0, i + 1);

          if (itemIndex == menuItem) {
            lcd.print(">");
          } else {
            lcd.print(" ");
          }

          lcd.print(menuItems[itemIndex]);
        }
      }

      lastMenuItem = menuItem;
      lastTopItem = topItem;
    }
  }

  while (digitalRead(sw) == LOW) {
    delay(10);
  }

if (menuItem == 0) {
  calibrationMode();
}

if (menuItem == 1) {
  quickCalibrationMode();
}

if (menuItem == 2) {
  editTotalGrams();
}

if (menuItem == 3) {
  setAeropressGrams();
}

if (menuItem == 4) {
  setDescaleReminder();
}

if (menuItem == 5) {
  updateScreen();
}
}

void setDescaleReminder() {
  lcd.clear();

  while (digitalRead(settingsButton) == LOW) {
    delay(10);
  }

  int tempInterval = descaleInterval;
  int lastDisplayed = -1;

  static int lastClkState = HIGH;

  lcd.setCursor(1, 0);
  lcd.print("Descale Reminder");

  lcd.setCursor(0, 3);
  lcd.print("<Press knob to save>");

  while (digitalRead(sw) == HIGH) {

    if (digitalRead(instantGrindButtonPin) == LOW) {
      lcd.clear();
      lcd.setCursor(7, 1);
      lcd.print("Cancel");

      delay(800);

      while (digitalRead(instantGrindButtonPin) == LOW) {
        delay(10);
      }

      updateScreen();
      return;
    }

    int clkState = digitalRead(clk);

    if (clkState != lastClkState && clkState == LOW) {

      if (digitalRead(dt) != clkState) {
        if (tempInterval == 0) {
          tempInterval = 5;
        } else if (tempInterval == 5) {
          tempInterval = 100;
        } else {
          tempInterval += 50;
        }
      } else {
        if (tempInterval == 100) {
          tempInterval = 5;
        } else if (tempInterval == 5) {
          tempInterval = 0;
        } else if (tempInterval > 100) {
          tempInterval -= 50;
        }
      }

      if (tempInterval > 500) {
        tempInterval = 500;
      }

      delay(120);
    }

    lastClkState = clkState;

    if (tempInterval != lastDisplayed) {
      lcd.setCursor(1, 1);
      lcd.print("Every:             ");

      lcd.setCursor(8, 1);

      if (tempInterval == 0) {
        lcd.print("Off");
      } else {
        lcd.print(tempInterval);
        lcd.print(" coffees");
      }

      lastDisplayed = tempInterval;
    }
  }

  while (digitalRead(sw) == LOW) {
    delay(10);
  }

  // Save interval first
  descaleInterval = tempInterval;
  EEPROM.put(descaleIntervalMemory, descaleInterval);

  // Ask whether to reset counter
  bool resetCounter = false;
  bool lastResetDisplayed = !resetCounter;

  lcd.clear();
  lcd.setCursor(2, 0);
  lcd.print("Reset Counter?");

  lcd.setCursor(0, 3);
  lcd.print("<Press knob save>");

  lastClkState = HIGH;

  while (digitalRead(sw) == HIGH) {

    if (digitalRead(instantGrindButtonPin) == LOW) {
      lcd.clear();
      lcd.setCursor(7, 1);
      lcd.print("Cancel");

      delay(800);

      while (digitalRead(instantGrindButtonPin) == LOW) {
        delay(10);
      }

      updateScreen();
      return;
    }

    int clkState = digitalRead(clk);

    if (clkState != lastClkState && clkState == LOW) {
      resetCounter = !resetCounter;
      delay(160);
    }

    lastClkState = clkState;

    if (resetCounter != lastResetDisplayed) {
      lcd.setCursor(4, 2);
      lcd.print("Choice:       ");

      lcd.setCursor(12, 2);
      if (resetCounter) {
        lcd.print("Yes");
      } else {
        lcd.print("No ");
      }

      lastResetDisplayed = resetCounter;
    }
  }

  while (digitalRead(sw) == LOW) {
    delay(10);
  }

  if (resetCounter) {
    descaleCoffeeCount = 0;
    EEPROM.put(descaleCounterMemory, descaleCoffeeCount);
  }

  lcd.clear();
  lcd.setCursor(2, 0);
  lcd.print("Descale Interval");

  lcd.setCursor(7, 1);
  lcd.print("Saved");

  if (descaleInterval == 0) {
    lcd.setCursor(6, 2);
    lcd.print("* Off *");
  } else {
    lcd.setCursor(4, 2);
    lcd.print(descaleInterval);
    lcd.print(" coffees");
  }

  if (resetCounter) {
    lcd.setCursor(3, 3);
    lcd.print("Counter Reset");
  } else {
    lcd.setCursor(3, 3);
    lcd.print("Counter Kept");
  }

  delay(2000);

  updateScreen();
}

void addCoffeeToDescaleCounter() {
  if (descaleInterval == 0) {
    return;
  }

  descaleCoffeeCount++;
  EEPROM.put(descaleCounterMemory, descaleCoffeeCount);

  if (descaleCoffeeCount >= descaleInterval) {
    showDescaleReminder();
  }
}

void showDescaleReminder() {
  lcd.clear();

  lcd.setCursor(2, 0);
  lcd.print("Descale Reminder");

  lcd.setCursor(10, 1);
  lcd.print(descaleCoffeeCount);
  lcd.setCursor(2,2);
  lcd.print("Coffees Reached");


  lcd.setCursor(2, 3);
  lcd.print("<Press to reset>");

  while (digitalRead(sw) == HIGH) {
    delay(10);
  }

  while (digitalRead(sw) == LOW) {
    delay(10);
  }

  descaleCoffeeCount = 0;
  EEPROM.put(descaleCounterMemory, descaleCoffeeCount);

  lcd.clear();
  lcd.setCursor(8, 1);
  lcd.print("Reset");
  lcd.setCursor(1,3);
  lcd.print("<Press to Continue>");
  delay(1000);
}


void quickCalibrationMode() {
  lcd.clear();

  if (!hasLastGrind || lastGrindSeconds <= 0) {
    lcd.setCursor(2, 1);
    lcd.print("No Last Grind");
    lcd.setCursor(1, 2);
    lcd.print("Do a grind first");
    delay(1800);
    updateScreen();
    return;
  }

  float expectedGrams = lastGrindGrams;
  float actualGrams = expectedGrams;
  float lastDisplayed = -1;

  static int lastClkState = HIGH;
  unsigned long lastTurnTime = 0;

  lcd.setCursor(1, 0);
  lcd.print("Quick Calibration");

  lcd.setCursor(0, 1);
  lcd.print("Last:");
  lcd.setCursor(6, 1);
  lcd.print(expectedGrams, 1);
  lcd.print("g");

  lcd.setCursor(12, 1);
  lcd.print("in ");
  lcd.print(lastGrindSeconds, 1);
  lcd.print("s");

  lcd.setCursor(0, 3);
  lcd.print("<Press knob save>");

  while (digitalRead(sw) == HIGH) {

    if (digitalRead(instantGrindButtonPin) == LOW) {
      lcd.clear();
      lcd.setCursor(7, 1);
      lcd.print("Cancel");
      delay(800);

      while (digitalRead(instantGrindButtonPin) == LOW) {
        delay(10);
      }

      updateScreen();
      return;
    }

    int clkState = digitalRead(clk);

    if (clkState != lastClkState && clkState == LOW) {
      unsigned long now = millis();
      unsigned long turnGap = now - lastTurnTime;
      lastTurnTime = now;

      float stepSize = 0.1;

      if (turnGap < 80) {
        stepSize = 1.0;
      } else if (turnGap < 180) {
        stepSize = 0.5;
      }

      if (digitalRead(dt) != clkState) {
        actualGrams += stepSize;
      } else {
        actualGrams -= stepSize;
      }

      if (actualGrams < 0.1) {
        actualGrams = 0.1;
      }

      delay(40);
    }

    lastClkState = clkState;

    if (actualGrams != lastDisplayed) {
      lcd.setCursor(0, 2);
      lcd.print("Actual:             ");
      lcd.setCursor(8, 2);
      lcd.print(actualGrams, 1);
      lcd.print(" g");

      lastDisplayed = actualGrams;
    }
  }

  // --- CALCULATION ---
  float errorPercent = 0;
  if (expectedGrams > 0.01) {
    errorPercent = ((actualGrams - expectedGrams) / expectedGrams) * 100.0;
  }

  gramsPerSecond = actualGrams / lastGrindSeconds;
  EEPROM.put(gpsMemory, gramsPerSecond);

  // --- RESULT SCREEN ---
  lcd.clear();

  lcd.setCursor(1, 0);
  lcd.print("Calibration Saved");

  lcd.setCursor(6, 1);
  lcd.print(gramsPerSecond, 2);
  lcd.print(" g/s");

  lcd.setCursor(4, 2);
  lcd.print("Error: ");
  if (errorPercent >= 0) {
    lcd.print("+");
  }
  lcd.print(errorPercent, 1);
  lcd.print("%");

  lcd.setCursor(4, 3);
  lcd.print("<Press Knob>");

  // --- WAIT FOR RELEASE (from save press) ---
  while (digitalRead(sw) == LOW) {
    delay(10);
  }

  // --- WAIT FOR NEW PRESS ---
  while (digitalRead(sw) == HIGH) {
    delay(10);
  }

  // --- WAIT FOR RELEASE AGAIN ---
  while (digitalRead(sw) == LOW) {
    delay(10);
  }

  updateScreen();
}

void calibrationMode() {
  lcd.clear();

  int calibrationSeconds = 10;
  int lastDisplayedSeconds = -1;

  static int lastClkState = HIGH;
  unsigned long lastTurnTime = 0;

  lcd.setCursor(2, 0);
  lcd.print("Calibration Time");
  lcd.setCursor(0, 3);
  lcd.print("<Press knob to set>");

  // --- SELECT CALIBRATION DURATION ---
  while (digitalRead(sw) == HIGH) {

    if (digitalRead(instantGrindButtonPin) == LOW) {
      lcd.clear();
      lcd.setCursor(7, 1);
      lcd.print("Cancel");
      delay(800);

      while (digitalRead(instantGrindButtonPin) == LOW) {
        delay(10);
      }

      updateScreen();
      return;
    }

    int clkState = digitalRead(clk);

    if (clkState != lastClkState && clkState == LOW) {

      unsigned long now = millis();
      unsigned long turnGap = now - lastTurnTime;
      lastTurnTime = now;

      int stepSize = 1;

      if (turnGap < 80) {
        stepSize = 10;
      } else if (turnGap < 180) {
        stepSize = 5;
      }

      if (digitalRead(dt) != clkState) {
        calibrationSeconds += stepSize;
      } else {
        calibrationSeconds -= stepSize;
      }

      if (calibrationSeconds < 1) calibrationSeconds = 1;
      if (calibrationSeconds > 60) calibrationSeconds = 60;

      delay(40);
    }

    lastClkState = clkState;

    if (calibrationSeconds != lastDisplayedSeconds) {
      lcd.setCursor(4, 2);
      lcd.print("Time:        ");
      lcd.setCursor(10, 2);
      lcd.print(calibrationSeconds);
      lcd.print(" sec");

      lastDisplayedSeconds = calibrationSeconds;
    }
  }

  while (digitalRead(sw) == LOW) {
    delay(10);
  }

  lcd.clear();
  lcd.setCursor(5, 0);
  lcd.print("Calibration");
  lcd.setCursor(2, 1);
  lcd.print(calibrationSeconds);
  lcd.print(" sec test grind");
  lcd.setCursor(1, 3);
  lcd.print("<Press Knob Start>");

  while (digitalRead(sw) == HIGH) {
    if (digitalRead(instantGrindButtonPin) == LOW) {
      lcd.clear();
      lcd.setCursor(7, 1);
      lcd.print("Cancel");
      delay(800);

      while (digitalRead(instantGrindButtonPin) == LOW) {
        delay(10);
      }

      updateScreen();
      return;
    }

    delay(10);
  }

  while (digitalRead(sw) == LOW) {
    delay(10);
  }

  lcd.clear();
  lcd.setCursor(4, 1);
  lcd.print("Preparing...");
  delay(1500);

  lcd.clear();

  digitalWrite(ledPin, HIGH);
  digitalWrite(relayPin, HIGH);

  for (int i = calibrationSeconds; i > 0; i--) {
    lcd.setCursor(0, 1);
    lcd.print("Starting Calibration");
    lcd.setCursor(7, 2);
    lcd.print("      ");
    lcd.setCursor(7, 2);
    lcd.print(i);
    lcd.print(" sec");
    delay(1000);
  }

  digitalWrite(ledPin, LOW);
  digitalWrite(relayPin, LOW);

  float measuredGrams = calibrationSeconds * gramsPerSecond;

  if (measuredGrams <= 0 || isnan(measuredGrams)) {
    measuredGrams = 10.0;
  }

  float lastDisplayed = -1;

  lastTurnTime = 0;

  lcd.clear();
  lcd.setCursor(4, 0);
  lcd.print("Enter Weight:");
  lcd.setCursor(0, 3);
  lcd.print("<Press knob to save>");

  while (digitalRead(sw) == HIGH) {

    if (digitalRead(instantGrindButtonPin) == LOW) {
      lcd.clear();
      lcd.setCursor(7, 1);
      lcd.print("Cancel");
      delay(800);

      while (digitalRead(instantGrindButtonPin) == LOW) {
        delay(10);
      }

      updateScreen();
      return;
    }

    int clkState = digitalRead(clk);

    if (clkState != lastClkState && clkState == LOW) {

      unsigned long now = millis();
      unsigned long turnGap = now - lastTurnTime;
      lastTurnTime = now;

      float stepSize = 0.1;

      if (turnGap < 80) {
        stepSize = 1.0;
      } else if (turnGap < 180) {
        stepSize = 0.5;
      }

      if (digitalRead(dt) != clkState) {
        measuredGrams += stepSize;
      } else {
        measuredGrams -= stepSize;
      }

      if (measuredGrams < 0) {
        measuredGrams = 0;
      }

      delay(40);
    }

    lastClkState = clkState;

    if (measuredGrams != lastDisplayed) {
      lcd.setCursor(3, 2);
      lcd.print("Weight:");
      lcd.setCursor(10, 2);
      lcd.print(measuredGrams, 1);
      lcd.print(" ");
      lcd.setCursor(15,2);
      lcd.print("g");

      lastDisplayed = measuredGrams;
    }
  }

  gramsPerSecond = measuredGrams / calibrationSeconds;
  EEPROM.put(gpsMemory, gramsPerSecond);

  lcd.clear();
  lcd.setCursor(1, 1);
  lcd.print("Calibration Saved");

  lcd.setCursor(6, 2);
  lcd.print(gramsPerSecond, 2);
  lcd.print(" g/s");

  delay(2000);

  while (digitalRead(sw) == LOW) {
    delay(10);
  }

  updateScreen();
}

void editTotalGrams() {
  lcd.clear();

  // Wait for settings button release
  while (digitalRead(settingsButton) == LOW) {
    delay(10);
  }

  float editedTotal = totalGramsStored;
  float lastDisplayed = -1;

  static int lastClkState = HIGH;
  unsigned long lastTurnTime = 0;

  lcd.setCursor(2, 0);
  lcd.print("Set Total Grams:");

  lcd.setCursor(0, 3);
  lcd.print("<Press knob to save>");

  while (digitalRead(sw) == HIGH) {

    // White button cancels without saving
    if (digitalRead(instantGrindButtonPin) == LOW) {
      lcd.clear();
      lcd.setCursor(7, 1);
      lcd.print("Cancel");

      delay(800);

      while (digitalRead(instantGrindButtonPin) == LOW) {
        delay(10);
      }

      updateScreen();
      return;
    }

    int clkState = digitalRead(clk);

    if (clkState != lastClkState && clkState == LOW) {

      unsigned long now = millis();
      unsigned long turnGap = now - lastTurnTime;
      lastTurnTime = now;

      float stepSize = 10;

      if (turnGap < 80) {
        stepSize = 500;
      } else if (turnGap < 180) {
        stepSize = 100;
      }

      if (digitalRead(dt) != clkState) {
        editedTotal += stepSize;
      } else {
        editedTotal -= stepSize;
      }

      if (editedTotal < 0) {
        editedTotal = 0;
      }

      delay(40);
    }

    lastClkState = clkState;

    if (editedTotal != lastDisplayed) {
      lcd.setCursor(3, 2);
      lcd.print("Total:             ");

      lcd.setCursor(10, 2);
      lcd.print(editedTotal, 0);
      lcd.print(" g");

      lastDisplayed = editedTotal;
    }
  }

  totalGramsStored = editedTotal;
  EEPROM.put(EEPROM_ADDRESS, totalGramsStored);

  lcd.clear();
  lcd.setCursor(8, 1);
  lcd.print("Saved");

  lcd.setCursor(7, 2);
  lcd.print(totalGramsStored, 0);
  lcd.print(" g");

  delay(1200);

  while (digitalRead(sw) == LOW) {
    delay(10);
  }

  updateScreen();
}

void updateModeIndicator() {
  lcd.setCursor(11, 3);
  lcd.print("Mode:");
  lcd.setCursor(18,3);
  if (grindMode == 0) {
    lcd.print("TG"); // Timed Grind
  }
  else if (grindMode == 1) {
    lcd.print("AP"); // Aeropress
  }
  else if (grindMode == 2) {
    lcd.print("FR"); // Free Run
  }
}

float readSensorTemperature() {
  int rawADC = analogRead(thermistorPin);

  if (rawADC <= 1 || rawADC >= 1022) {
    return -999;
  }

  float resistance = resistorValue / ((1023.0 / rawADC) - 1.0);

  if (resistance <= 0 || isnan(resistance) || isinf(resistance)) {
    return -999;
  }

  float tempKelvin = 1.0 / (A + B * log(resistance) + C * pow(log(resistance), 3));
  float tempCelsiusStretch = tempKelvin - 273.15;
  float inputValue = tempCelsiusStretch;

  float calculatedTemp = -999;

  if (inputValue < 51) {
    float inputMin = 39.3;
    float inputMax = 51.0;
    float outputMin = 4.0;
    float outputMax = 35.0;
    calculatedTemp = (inputValue - inputMin) * (outputMax - outputMin) / (inputMax - inputMin) + outputMin;
  }

  if (inputValue >= 51) {
    float inputMin = 51.1;
    float inputMax = 61.0;
    float outputMin = 35.1;
    float outputMax = 54.0;
    calculatedTemp = (inputValue - inputMin) * (outputMax - outputMin) / (inputMax - inputMin) + outputMin;
  }

  //return calculatedTemp;

  if (calculatedTemp > 100.0) {
    calculatedTemp = 100.0 + ((calculatedTemp - 100.0) * 1.4);
  }

  return calculatedTemp;



}

void updateMainTempOnly() {
  float mainTemp = readSensorTemperature();

  lcd.setCursor(0, 3);

  if (mainTemp >= 0 && mainTemp <= 200) {
    lcd.print("     ");
    lcd.setCursor(0, 3);
    lcd.print(mainTemp, 1);
    lcd.setCursor(6,3);
    lcd.print("C");
  } else {
    lcd.print("-----");
  }
}

void updateScreen() {
  lcd.clear();

  // Calculate grams from current settings
  totalGrams = gramsPerSecond * grinding;

if (grindMode == 1) {
  // --- AEROPRESS MODE ---
  lcd.setCursor(0,0);
  lcd.print("                    ");

  lcd.setCursor(0,1);
  lcd.print("Aeropress/V60 ");

  lcd.print(aeropressGrams, 0);
  lcd.print("g        ");
} else if (grindMode == 2) {
    // --- FREE RUN MODE ---
    lcd.setCursor(0,0);
    lcd.print("                    ");
    lcd.setCursor(0,1);
    lcd.print("Free Run        ");

  } else {
    // --- TIMED GRIND MODE (NOW GRAMS BASED) ---
    lcd.setCursor(0, 0);
    lcd.print("Grams: ");

   //lcd.setCursor(7, 1);
    lcd.print(totalGrams, 1);
    lcd.print(" g");
  }

  // Always show calibration (g/s)
  lcd.setCursor(11,2);
  lcd.print("g/s: ");
  lcd.setCursor(16,2);
  lcd.print(gramsPerSecond, 2);

  // Bottom right prompt
lcd.setCursor(16, 0);
lcd.print("<GO>");

  // Mode indicator (TG / AP / FR)
  updateModeIndicator();

  // Update speed tracking for fast scroll
  grindSpeed = millis();
}

void handleRotate(int8_t rotation) {

  // Only allow adjustment in Timed Grind mode
  if (grindMode != 0) {
    return;
  }

  // Do nothing if calibration is not set
  if (gramsPerSecond <= 0) {
    return;
  }

  static unsigned long lastRotateTime = 0;

  unsigned long now = millis();
  unsigned long turnGap = now - lastRotateTime;
  lastRotateTime = now;

  // Current grams required
  totalGrams = gramsPerSecond * grinding;

  float stepSize = 0.1;

  if (turnGap < 60) {
    stepSize = 2.5;
  }
  else if (turnGap < 120) {
    stepSize = 1.0;
  }
  else if (turnGap < 220) {
    stepSize = 0.5;
  }
  else {
    stepSize = 0.1;
  }

  if (rotation > 0) {
    totalGrams -= stepSize;
  }
  else {
    totalGrams += stepSize;
  }

  // Limit range
  if (totalGrams < 0.1) {
    totalGrams = 0.1;
  }

  if (totalGrams > 100.0) {
    totalGrams = 100.0;
  }

  // Convert grams back into grind time
  grinding = totalGrams / gramsPerSecond;
}

void handleLongPress() {
  //startGrinding();
}

void handlePressRotate(int8_t rotation) {
  knobWasRotatedWhilePressed = true;

  if (rotation > 0) {
    if (gramsPerSecond >= 0.1) {
      gramsPerSecond = gramsPerSecond - 0.01;

      if (gpsSpeedExceeded > millis() - grindSpeed) {
        gramsPerSecond = gramsPerSecond - 0.2;
      }
    }
  }
  else {
    gramsPerSecond = gramsPerSecond + 0.01;

    if (gpsSpeedExceeded > millis() - grindSpeed) {
      gramsPerSecond = gramsPerSecond + 0.2;
    }
  }
  updateGpsOnly();
}

void handlePressRelease() {
  if (!knobWasRotatedWhilePressed) {
    if (gramsPerSecond <= 0 && grindMode != 2) {
      lcd.clear();
      lcd.setCursor(3, 1);
      lcd.print("Calibrate First");
      delay(2000);
      updateScreen();
      return;
    }

    confirmStartGrinding();
  }
}


void handleLongPressRelease() {
}

void handlePress() {
  knobWasRotatedWhilePressed = false;
}

void handlePressRotateRelease() {
  EEPROM.put(gpsMemory, gramsPerSecond);
  calibrateScreen();
  knobWasRotatedWhilePressed = false;
  updateScreen();
}
void updateGpsOnly() {
  lcd.setCursor(16, 2);
  lcd.print("    ");

  lcd.setCursor(16, 2);
  lcd.print(gramsPerSecond, 2);
}

void saveSettings() {
  EEPROM.put(grindTimeMemory, grinding);
}

void confirmStartGrinding() {
  lcd.clear();

  float targetGrams = gramsPerSecond * grinding;

  // Only save the timed grind setting in Timed Grind mode
  if (grindMode == 0) {
    saveSettings();
  }

  lcd.setCursor(0, 0);
  lcd.print("Start Grind?");

  lcd.setCursor(0, 1);

  if (grindMode == 1) {
    lcd.print("Aeropress/V60 Mode");
  }
  else if (grindMode == 2) {
    lcd.print("Free Run Mode");
  }
  else {
    lcd.setCursor(13, 0);
    lcd.print(targetGrams, 1);
    lcd.print(" g");
  }

  lcd.setCursor(1, 2);
  lcd.print("<Click to Start>");
  lcd.setCursor(1, 3);
  lcd.print("<White to Cancel>");

  // Wait for knob release after initial press
  while (digitalRead(sw) == LOW) {
    delay(10);
  }

  while (true) {

    // Confirm with knob press
    if (digitalRead(sw) == LOW) {
      while (digitalRead(sw) == LOW) {
        delay(10);
      }

      lcd.clear();
      startGrinding();
      return;
    }

    // Cancel with white button
    if (digitalRead(instantGrindButtonPin) == LOW) {
      lcd.clear();
      lcd.setCursor(7, 1);
      lcd.print("Cancel");

      delay(700);

      while (digitalRead(instantGrindButtonPin) == LOW) {
        delay(10);
      }

      updateScreen();
      return;
    }

    delay(10);
  }
}

void greenButtonPressed() {
  grindMode++;

  if (grindMode > 2) {
    grindMode = 0;
  }

  lcd.clear();

  if (grindMode == 0) {
    lcd.setCursor(2, 1);
    lcd.print("Timed Grind Mode");
  }

if (grindMode == 1) {
  lcd.setCursor(1, 1);
  lcd.print("Aeropress/V60 Mode");

  lcd.setCursor(8, 2);
  lcd.print(aeropressGrams, 1);
  lcd.print(" g");
}

  if (grindMode == 2) {
    lcd.setCursor(4, 1);
    lcd.print("Free Run Mode");
    lcd.setCursor(1, 2);
    lcd.print("<Click to start>");
  }

  delay(1000);
  updateScreen();
}

void calibrateScreen() {
  lcd.clear();
  lcd.setCursor(0,1);
  lcd.print("Manual Calibration");
  lcd.setCursor(0,2);
  lcd.print("Saved: ");
  lcd.print(gramsPerSecond * 10 / 10,2);
  lcd.print(" g/s");
  delay(2000);
}

void oneGramGrind() {

  if (gramsPerSecond <= 0) {
    lcd.clear();
    lcd.setCursor(3, 1);
    lcd.print("Calibrate First");
    delay(1200);
    updateScreen();
    return;
  }

  float targetGrams = 1.0;
  unsigned long grindDuration = (targetGrams / gramsPerSecond) * 1000;

  lcd.clear();
  lcd.setCursor(3, 1);
  lcd.print("Dispensing 1g");

  // Wait for white button release before starting
  while (digitalRead(instantGrindButtonPin) == LOW) {
    delay(10);
  }

  digitalWrite(ledPin, HIGH);
  digitalWrite(relayPin, HIGH);

  unsigned long startTime = millis();

  while (millis() - startTime < grindDuration) {
    // just wait
  }

  digitalWrite(ledPin, LOW);
  digitalWrite(relayPin, LOW);

  totalGramsStored += 1.0;
  EEPROM.put(EEPROM_ADDRESS, totalGramsStored);

  lcd.clear();
  lcd.setCursor(6, 1);
  lcd.print("1g Added");

  delay(800);

  updateScreen();
}

void masterReset() {
  if (digitalRead(clearEEPROMButtonPin) == LOW) {
    if (clearButtonStartTime == 0) {
      clearButtonStartTime = millis();
    }

    if (millis() - clearButtonStartTime >= clearHoldDuration) {
      totalGramsStored = 0.0;

      for (int i = 0; i < EEPROM.length(); ++i) {
        EEPROM.write(i, 1);
      }

      gramsPerSecond = 0;
      grinding = 0;
      stopMilkC = 55;

      EEPROM.put(finalDrinkTempSave, stopMilkC);

      lcd.clear();
      lcd.setCursor(3, 1);
      lcd.print("Memory Cleared");
      delay(2000);
      updateScreen();
    }
  }
  else {
    clearButtonStartTime = 0;
  }
}

void oneSecondGrind() {
  if (millis() - pauseButtonStartTime >= pauseHoldDuration) {
    digitalWrite(ledPin, HIGH);
    digitalWrite(relayPin, HIGH);

    lcd.clear();
    lcd.setCursor(2, 1);
    lcd.print("Immediate Grind");
    lcd.setCursor(6, 2);
    lcd.print("1 Second");

    delay(1000);

    digitalWrite(ledPin, LOW);
    digitalWrite(relayPin, LOW);
  }
  else {
    pauseButtonStartTime = millis();
  }

  updateScreen();
}

void startGrinding() {

  if (!countdownStarted) {
    countdownStarted = true;

    // --- STARTING DELAY ---
    lcd.clear();
    lcd.setCursor(4, 1);
    lcd.print("Preparing...");
    delay(1500);

    bool tempAPMode = (grindMode == 1);
    bool freeRunMode = (grindMode == 2);

    float originalGrinding = grinding;
    float targetGrams = gramsPerSecond * grinding;

    // --- AEROPRESS MODE ---
    if (tempAPMode && gramsPerSecond > 0) {
      grinding = aeropressGrams / gramsPerSecond;
      targetGrams = aeropressGrams;

      lcd.clear();
      lcd.setCursor(1, 1);
      lcd.print("Aeropress/V60 ");
      lcd.print(aeropressGrams, 1);
      lcd.print("g");
      delay(1000);
    }

    // --- FREE RUN MODE ---
    if (freeRunMode) {

      lcd.clear();
      lcd.setCursor(4, 0);
      lcd.print("FREE RUNNING");

      lcd.setCursor(1, 3);
      lcd.print("Press knob to stop");

      while (digitalRead(sw) == LOW) {
        delay(10);
      }

      digitalWrite(ledPin, HIGH);
      digitalWrite(relayPin, HIGH);

      unsigned long startTime = millis();
      unsigned long lastDisplayUpdate = 0;

      // Chasing bar variables
      int chasePosition = 0;
      bool chaseFilled = true;
      unsigned long lastChaseUpdate = 0;

      float gramsDispensed = 0;

      while (digitalRead(sw) == HIGH) {

        unsigned long elapsed = millis() - startTime;
        float secondsElapsed = elapsed / 1000.0;
        gramsDispensed = gramsPerSecond * secondsElapsed;

        // --- GRAMS DISPLAY ---
        if (millis() - lastDisplayUpdate > 120) {
          lastDisplayUpdate = millis();

          lcd.setCursor(2, 1);
          lcd.print("Output:");

          lcd.setCursor(10, 1);
          lcd.print(gramsDispensed, 1);
          lcd.print(" g");
        }

        // --- CHASING BAR ---
        if (millis() - lastChaseUpdate > 80) {
          lastChaseUpdate = millis();

          lcd.setCursor(0, 2);

          for (int i = 0; i < 20; i++) {
            if (chaseFilled) {
              if (i <= chasePosition) {
                lcd.print((char)255);
              } else {
                lcd.print(" ");
              }
            } else {
              if (i <= chasePosition) {
                lcd.print(" ");
              } else {
                lcd.print((char)255);
              }
            }
          }

          chasePosition++;

          if (chasePosition >= 20) {
            chasePosition = 0;
            chaseFilled = !chaseFilled;
          }
        }

        delay(10);
      }

      digitalWrite(ledPin, LOW);
      digitalWrite(relayPin, LOW);

      unsigned long runTime = millis() - startTime;
      float secondsRun = runTime / 1000.0;
      gramsDispensed = gramsPerSecond * secondsRun;

      totalGramsStored += gramsDispensed;
      EEPROM.put(EEPROM_ADDRESS, totalGramsStored);

      lcd.clear();
      lcd.setCursor(2, 1);
      lcd.print("Free Run Output");

      lcd.setCursor(8, 2);
      lcd.print(gramsDispensed, 1);
      lcd.print(" g");

      delay(2500);

     countdownStarted = false;
isPaused = false;

addCoffeeToDescaleCounter();

updateScreen();
return;
    }

    // --- TIMED GRIND (UNCHANGED) ---
    digitalWrite(ledPin, HIGH);
    digitalWrite(relayPin, HIGH);

    lcd.clear();

    unsigned long grindStartTime = millis();
    unsigned long grindDuration = grinding * 1000;

    unsigned long lastDisplayUpdate = 0;

    while (millis() - grindStartTime < grindDuration) {

      unsigned long elapsed = millis() - grindStartTime;
      float secondsElapsed = elapsed / 1000.0;

      float gramsElapsed = gramsPerSecond * secondsElapsed;
      float gramsRemaining = targetGrams - gramsElapsed;

      if (gramsRemaining < 0.05) {
        gramsRemaining = 0;
      }

      if (millis() - lastDisplayUpdate >= 120) {
        lastDisplayUpdate = millis();

lcd.setCursor(5,0);
lcd.print("Grinding:");
lcd.setCursor(2, 1);
lcd.print("Remaining ");
lcd.print(gramsRemaining, 1);
lcd.print(" g   ");

        float progress = secondsElapsed / grinding;
        if (progress < 0) progress = 0;
        if (progress > 1) progress = 1;

        int totalPixels = progress * 100;
        int fullBlocks = totalPixels / 5;
        int partialBlock = totalPixels % 5;

        lcd.setCursor(0, 2);

        for (int b = 0; b < 20; b++) {
          if (b < fullBlocks) {
            lcd.print((char)255);
          }
          else if (b == fullBlocks && partialBlock > 0) {
            lcd.write(byte(partialBlock));
          }
          else {
            lcd.print(" ");
          }
        }

        lcd.setCursor(1, 3);
        lcd.print("<White to Cancel>");
      }

      if (digitalRead(instantGrindButtonPin) == LOW) {

        digitalWrite(ledPin, LOW);
        digitalWrite(relayPin, LOW);

        lcd.clear();
        lcd.setCursor(3, 1);
        lcd.print("Grind Cancelled");

        delay(2000);

        while (digitalRead(instantGrindButtonPin) == LOW) {
          delay(10);
        }

        countdownStarted = false;
        isPaused = false;

        grinding = originalGrinding;
        totalGrams = gramsPerSecond * grinding;

        updateScreen();
        return;
      }
    }

    digitalWrite(ledPin, LOW);
    digitalWrite(relayPin, LOW);

    if (tempAPMode) {
      totalGramsStored += aeropressGrams;
    } else {
      totalGramsStored += totalGrams;
    }

    EEPROM.put(EEPROM_ADDRESS, totalGramsStored);

    lcd.clear();
    lcd.setCursor(2, 0);
    lcd.print("Grams Dispensed");

    lcd.setCursor(7, 1);

    if (tempAPMode) {
      lcd.print(aeropressGrams, 1);
    } else {
      lcd.print(totalGrams, 1);
    }

    lcd.print(" g");

    lcd.setCursor(5, 2);
    lcd.print("in ");
    lcd.print(grinding, 1);
    lcd.print(" sec");

    lcd.setCursor(2, 3);
    lcd.print("<Return to Home>");

grinding = originalGrinding;
totalGrams = gramsPerSecond * grinding;
countdownStarted = false;
isPaused = false;
/*
if (tempAPMode) {
  lastGrindGrams = aeropressGrams;
} else {
  lastGrindGrams = totalGrams;
}

lastGrindSeconds = grinding;
hasLastGrind = true;*/

if (tempAPMode) {
  lastGrindGrams = aeropressGrams;
  lastGrindSeconds = aeropressGrams / gramsPerSecond;
} else {
  lastGrindGrams = totalGrams;
  lastGrindSeconds = grinding;
}

hasLastGrind = true;

if (!tempAPMode) {
  addCoffeeToDescaleCounter();
}
  }

  while (digitalRead(sw) == HIGH) {
  }

  while (digitalRead(sw) == LOW) {
    delay(10);
  }

  updateScreen();
}
Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.
