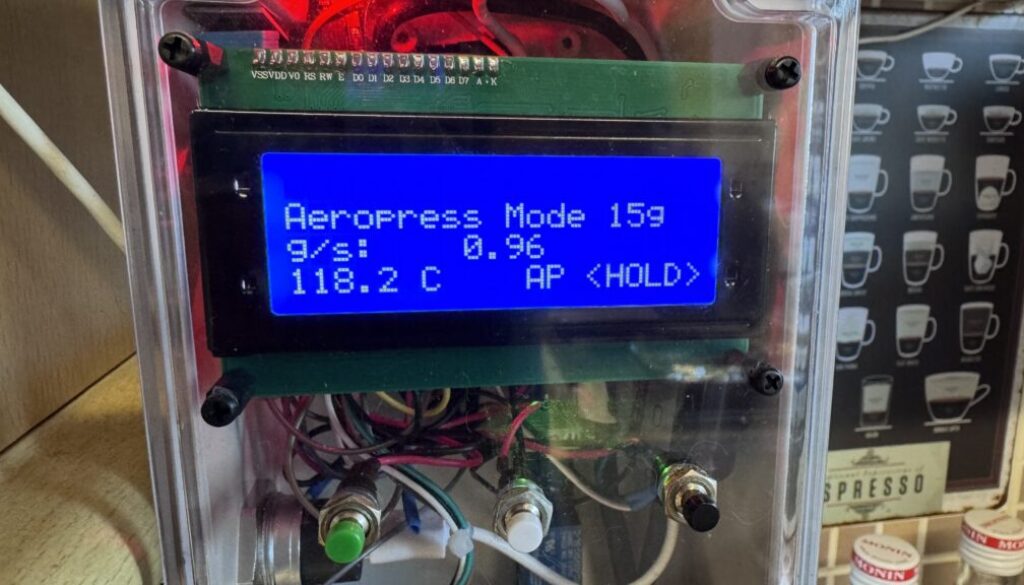

IMG_6571

Colin V32.3 (2026)

#include <Wire.h>
#include <LiquidCrystal_I2C.h>
#include <EEPROM.h>
#include <DHT11.h>
#include <Versatile_RotaryEncoder.h>


/* Colin the Grinder Project
© 2023-2026 George Crawford and Kevin Davy

ElectroKev.com
V32.3
Release Notes:

- NEW MODE SYSTEM:
 - AEROPRESS MODE (AP)
 - FREERUN MODE (FR)
 - TIMED GRIND MODE (TG)

- Prohibit grind settings changes unless in Timed Grind (TG) Mode
- NEW Edit total grams memory for total grinds correction
- NEW Live sensor temperature on main screen
- Freerun grind output monitoring
- Main screen live temp display
- Mode Main screen indicator
- Change Milk temp text to Sensor Temp
- Add <press to continue> after grinding in TG mode
- Add USB protection for pull up resistor in temperature mode
- Optimise temperature calculation algorithm for 10k (Variable) + 330 Ohm (Fixed) Sensor
- Remove the double 'gg' bug when on live grinding screen
- Update welcome screens
- Fix several other small bugs

*/


DHT11 dht11(7);

int grindMode = 0;
bool greenButtonWasPressed = false;

const float versionNumber = 32.3;
const int clearEEPROMButtonPin = 2;
const int clearHoldDuration = 3000;

// Define the pin for the thermistor
const int thermistorPin = A3;

// Define the value of the resistor
const float resistorValue = 12500.0;

// Define the parameters for the Steinhart-Hart equation
// NEVER EVER EVER EVER EVER CHANGE THE VALUES BELOW
const float A = 0.001129148;
const float B = 0.000195125;
const float C = 0.0000000996741;
// higher the co e the lower the temp
// lower the co e the highewr the temp

float adjustStopMilkC;
const int buttonPin = 3;
const int settingsButton = 9;
const int instantGrindButtonPin = 6;
const int ledPin = 4;
const int relayPin = 5;
const int powerLightPin = 10;
const uint8_t i2cAddr = 0x27;
const int pauseHoldDuration = 1;

bool offBackFlash = false;
bool countdownStarted = false;
bool isPaused = false;
bool showTemperature = false;

unsigned long pauseButtonStartTime = 0;
unsigned long clearButtonStartTime = 0;

float totalGramsStored;
float grinding;
float totalGrams;
float gramsPerSecond;

int heatMilkC = 35;
int stopMilkC = 63;

float grindSpeed;
float grindSpeedExceeded = 20;
float gpsSpeedExceeded = 35;
float tempCelsius;

// Main screen temperature refresh
unsigned long lastTempUpdate = 0;
const unsigned long tempUpdateInterval = 500;

#define LCD_COLS 20
#define LCD_ROWS 4
#define EEPROM_ADDRESS 0
#define grindTimeMemory 10
#define gpsMemory 20
#define finalDrinkTempSave 30

LiquidCrystal_I2C lcd(i2cAddr, LCD_COLS, LCD_ROWS);

#define clk A0
#define dt A1
#define sw 11

Versatile_RotaryEncoder *versatile_encoder;

void setup() {

  Wire.begin();
  Wire.setClock(400000L);

  versatile_encoder = new Versatile_RotaryEncoder(clk, dt, sw);
  versatile_encoder->setHandleRotate(handleRotate);
  versatile_encoder->setHandlePress(handlePress);
  versatile_encoder->setHandlePressRelease(handlePressRelease);
  versatile_encoder->setHandleLongPress(handleLongPress);
  versatile_encoder->setHandlePressRotate(handlePressRotate);
  versatile_encoder->setHandlePressRotateRelease(handlePressRotateRelease);

  lcd.init();
  lcd.begin(16, 2);
  lcd.backlight();
  lcd.setBacklight(255);

  pinMode(buttonPin, INPUT_PULLUP);
  pinMode(sw, INPUT_PULLUP);
  pinMode(instantGrindButtonPin, INPUT_PULLUP);
  pinMode(ledPin, OUTPUT);
  pinMode(relayPin, OUTPUT);
  pinMode(powerLightPin, OUTPUT);
  pinMode(clearEEPROMButtonPin, INPUT_PULLUP);

  EEPROM.get(EEPROM_ADDRESS, totalGramsStored);
  EEPROM.get(grindTimeMemory, grinding);
  EEPROM.get(gpsMemory, gramsPerSecond);
  EEPROM.get(finalDrinkTempSave, stopMilkC);

  analogWrite(powerLightPin, 10);

  // change this to Non Pullup for built in USB protection - Not done yet as fails no sensor check.
  pinMode(thermistorPin, INPUT_PULLUP);

  int humidity = dht11.readHumidity();
  delay(500);
  int temperature = dht11.readTemperature();

  lcd.init();
  lcd.clear();
  lcd.setCursor(3, 0);
  lcd.print("ElectroKev.com");
  lcd.setCursor(4, 1);
  lcd.print("Coffee Time!");
  lcd.setCursor(8,2);
  lcd.print("v");
  lcd.print(versionNumber,1);
  lcd.setCursor(0,3);
  lcd.print(temperature);
  lcd.print("c");
  lcd.setCursor(17,3);
  lcd.print(humidity);
  lcd.print("%");

  delay(3000);
    lcd.clear();

    lcd.setCursor(0,0);
    lcd.print("George Crawford &");
    lcd.setCursor(0,1);
    lcd.print("Kevin Davy");
    lcd.setCursor(0,2);
  lcd.print("Total Ground:");
  lcd.setCursor(0,3);
  lcd.print(totalGramsStored,0);
  lcd.print(" g");
  delay(3000);

  updateScreen();
}

void loop() {

  if (versatile_encoder->ReadEncoder()) {
    updateScreen();
  }

  if (millis() - lastTempUpdate >= tempUpdateInterval) {
    lastTempUpdate = millis();
    updateMainTempOnly();
  }

if (digitalRead(buttonPin) == LOW && !greenButtonWasPressed) {
  greenButtonWasPressed = true;
  greenButtonPressed();
}

if (digitalRead(buttonPin) == HIGH) {
  greenButtonWasPressed = false;
}

  if (digitalRead(clearEEPROMButtonPin) == LOW) {
    masterReset();
  }

  if (digitalRead(instantGrindButtonPin) == LOW) {
    oneSecondGrind();
  }

  if (digitalRead(settingsButton) == LOW) {
  editTotalGrams();
}

updateModeIndicator();
}

void editTotalGrams() {
  lcd.clear();

  // Wait for settings button release
  while (digitalRead(settingsButton) == LOW) {
    delay(10);
  }

  float editedTotal = totalGramsStored;
  float lastDisplayed = -1;

  static int lastClkState = HIGH;
  unsigned long lastTurnTime = 0;

  // Header
  lcd.setCursor(2, 0);
  lcd.print("Set Total Grams:");

  // Instruction (full 20 chars)
  lcd.setCursor(0, 3);
  lcd.print("<Press knob to save>");

  while (digitalRead(sw) == HIGH) {

    int clkState = digitalRead(clk);

    if (clkState != lastClkState && clkState == LOW) {

      unsigned long now = millis();
      unsigned long turnGap = now - lastTurnTime;
      lastTurnTime = now;

      float stepSize = 10;

      if (turnGap < 80) {
        stepSize = 500;
      } else if (turnGap < 180) {
        stepSize = 100;
      }

      if (digitalRead(dt) != clkState) {
        editedTotal += stepSize;
      } else {
        editedTotal -= stepSize;
      }

      if (editedTotal < 0) {
        editedTotal = 0;
      }

      delay(40);
    }

    lastClkState = clkState;

    // Only update display if value changed
    if (editedTotal != lastDisplayed) {
      lcd.setCursor(3, 2);
      lcd.print("Total:             ");

      lcd.setCursor(10, 2);
      lcd.print(editedTotal, 0);
      lcd.print(" g");

      lastDisplayed = editedTotal;
    }
  }

  // Save value
  totalGramsStored = editedTotal;
  EEPROM.put(EEPROM_ADDRESS, totalGramsStored);

  lcd.clear();
  lcd.setCursor(8, 1);
  lcd.print("Saved");

  lcd.setCursor(7, 2);
  lcd.print(totalGramsStored, 0);
  lcd.print(" g");

  delay(1200);

  // Wait for knob release
  while (digitalRead(sw) == LOW) {
    delay(10);
  }

  updateScreen();
}

void updateModeIndicator() {
  lcd.setCursor(11, 3);

  if (grindMode == 0) {
    lcd.print("TG"); // Timed Grind
  }
  else if (grindMode == 1) {
    lcd.print("AP"); // Aeropress
  }
  else if (grindMode == 2) {
    lcd.print("FR"); // Free Run
  }
}

float readSensorTemperature() {
  int rawADC = analogRead(thermistorPin);

  if (rawADC <= 1 || rawADC >= 1022) {
    return -999;
  }

  float resistance = resistorValue / ((1023.0 / rawADC) - 1.0);

  if (resistance <= 0 || isnan(resistance) || isinf(resistance)) {
    return -999;
  }

  float tempKelvin = 1.0 / (A + B * log(resistance) + C * pow(log(resistance), 3));
  float tempCelsiusStretch = tempKelvin - 273.15;
  float inputValue = tempCelsiusStretch;

  float calculatedTemp = -999;

  if (inputValue < 51) {
    float inputMin = 39.3;
    float inputMax = 51.0;
    float outputMin = 4.0;
    float outputMax = 35.0;
    calculatedTemp = (inputValue - inputMin) * (outputMax - outputMin) / (inputMax - inputMin) + outputMin;
  }

  if (inputValue >= 51) {
    float inputMin = 51.1;
    float inputMax = 61.0;
    float outputMin = 35.1;
    float outputMax = 54.0;
    calculatedTemp = (inputValue - inputMin) * (outputMax - outputMin) / (inputMax - inputMin) + outputMin;
  }

  return calculatedTemp;
}

void updateMainTempOnly() {
  float mainTemp = readSensorTemperature();

  lcd.setCursor(0, 3);

  if (mainTemp >= 0 && mainTemp <= 200) {
    lcd.print("     ");
    lcd.setCursor(0, 3);
    lcd.print(mainTemp, 1);
    lcd.setCursor(6,3);
    lcd.print("C");
  } else {
    lcd.print("-----");
  }
}

void updateScreen() {
  lcd.clear();

  lcd.setCursor(0, 0);
  lcd.print("Time: ");
  lcd.setCursor(8,0);
  lcd.print(grinding,1);
  lcd.print(" Seconds");

  totalGrams = gramsPerSecond * grinding;
/*
  lcd.setCursor(0, 1);
  lcd.print("Grams: ");
  lcd.setCursor(8,1);
  lcd.print(totalGrams, 1);
  lcd.print(" g ");
  */

if (grindMode == 1) {
  // Aeropress mode
  lcd.setCursor(0,0);
  lcd.print("                    ");
  lcd.setCursor(0,1);
  lcd.print("Aeropress Mode 15g  ");

} else if (grindMode == 2) {
  // Free run mode
  lcd.setCursor(0,0);
  lcd.print("                    ");
  lcd.setCursor(0,1);
  lcd.print("Free Run Mode       ");

} else {
  // Timed grind mode
  lcd.setCursor(0, 0);
  lcd.print("Time: ");
  lcd.setCursor(8,0);
  lcd.print(grinding,1);
  lcd.print(" Seconds");

  lcd.setCursor(0, 1);
  lcd.print("Grams: ");
  lcd.setCursor(8,1);
  lcd.print(totalGrams, 1);
  lcd.print(" g ");
}

  lcd.setCursor(0,2);
  lcd.print("g/s: ");
  lcd.setCursor(8,2);
  lcd.print(gramsPerSecond * 10 / 10,2);

  lcd.setCursor(14, 3);
  lcd.print("<HOLD>");

  grindSpeed = millis();
  updateModeIndicator();
}

void handleRotate(int8_t rotation) {

  // Only allow grind time adjustment in Timed Grind mode
  if (grindMode != 0) {
    return;
  }

  if (rotation > 0) {
    if (grinding > 0.1) {
      grinding = grinding - 0.1;

      if (grindSpeedExceeded > millis() - grindSpeed) {
        grinding = grinding - 1.5;
      }
    }
  }
  else if (grinding < 50) {
    grinding = grinding + 0.1;

    if (grindSpeedExceeded > millis() - grindSpeed) {
      grinding = grinding + 1.5;
    }
  }
}

void handleLongPress() {
  startGrinding();
}

void handlePressRotate(int8_t rotation) {
  if (rotation > 0) {
    if (gramsPerSecond >= 0.1) {
      gramsPerSecond = gramsPerSecond - 0.01;

      if (gpsSpeedExceeded > millis() - grindSpeed) {
        gramsPerSecond = gramsPerSecond - 0.2;
      }
    }
  }
  else {
    gramsPerSecond = gramsPerSecond + 0.01;

    if (gpsSpeedExceeded > millis() - grindSpeed) {
      gramsPerSecond = gramsPerSecond + 0.2;
    }
  }
}

void handlePressRelease() {
}

void handleLongPressRelease() {
}

void handlePress() {
}

void handlePressRotateRelease() {
  EEPROM.put(gpsMemory, gramsPerSecond);
  calibrateScreen();
}

void saveSettings() {
  EEPROM.put(grindTimeMemory, grinding);
}

void greenButtonPressed() {
  grindMode++;

  if (grindMode > 2) {
    grindMode = 0;
  }

  lcd.clear();

  if (grindMode == 0) {
    lcd.setCursor(2, 1);
    lcd.print("Timed Grind Mode");
  }

  if (grindMode == 1) {
    lcd.setCursor(3, 1);
    lcd.print("Aeropress Mode");
    lcd.setCursor(9, 2);
    lcd.print("15 g");
  }

  if (grindMode == 2) {
    lcd.setCursor(4, 1);
    lcd.print("Free Run Mode");
    lcd.setCursor(1, 2);
    lcd.print("Hold knob to start");
  }

  delay(1000);
  updateScreen();
}

void calibrateScreen() {
  lcd.clear();
  lcd.setCursor(7,1);
  lcd.print("Saved:");
  lcd.setCursor(7,2);
  lcd.print(gramsPerSecond * 10 / 10,2);
  lcd.print(" g/s");
  delay(1000);
}

void masterReset() {
  if (digitalRead(clearEEPROMButtonPin) == LOW) {
    if (clearButtonStartTime == 0) {
      clearButtonStartTime = millis();
    }

    if (millis() - clearButtonStartTime >= clearHoldDuration) {
      totalGramsStored = 0.0;

      for (int i = 0; i < EEPROM.length(); ++i) {
        EEPROM.write(i, 1);
      }

      gramsPerSecond = 0;
      grinding = 0;
      stopMilkC = 55;

      EEPROM.put(finalDrinkTempSave, stopMilkC);

      lcd.clear();
      lcd.setCursor(3, 1);
      lcd.print("Memory Cleared");
      delay(2000);
      updateScreen();
    }
  }
  else {
    clearButtonStartTime = 0;
  }
}

void oneSecondGrind() {
  if (millis() - pauseButtonStartTime >= pauseHoldDuration) {
    digitalWrite(ledPin, HIGH);
    digitalWrite(relayPin, HIGH);

    lcd.clear();
    lcd.setCursor(2, 1);
    lcd.print("Immediate Grind");
    lcd.setCursor(5, 2);
    lcd.print("1/2 Second");

    delay(500);

    digitalWrite(ledPin, LOW);
    digitalWrite(relayPin, LOW);
  }
  else {
    pauseButtonStartTime = millis();
  }

  updateScreen();
}


void startGrinding() {

  if (!countdownStarted) {
    countdownStarted = true;

    bool temp15gMode = (grindMode == 1);
    bool freeRunMode = (grindMode == 2);

    float originalGrinding = grinding;
    float targetGrams = gramsPerSecond * grinding;

    // --- AEROPRESS MODE ---
    if (temp15gMode && gramsPerSecond > 0) {
      grinding = 15.0 / gramsPerSecond;
      targetGrams = 15.0;

      lcd.clear();
      lcd.setCursor(1, 1);
      lcd.print("Aeropress 15g Mode");
      delay(800);
    }

    // --- FREE RUN MODE ---
    if (freeRunMode) {

      lcd.clear();
      lcd.setCursor(4, 1);
      lcd.print("FREE RUNNING");
      lcd.setCursor(1, 3);
      lcd.print("Press knob to stop");

      // Wait for release of initial press
      while (digitalRead(sw) == LOW) {
        delay(10);
      }

      digitalWrite(ledPin, HIGH);
      digitalWrite(relayPin, HIGH);

      unsigned long startTime = millis();

      // Wait for next press to stop
      while (digitalRead(sw) == HIGH) {
        delay(10);
      }

      digitalWrite(ledPin, LOW);
      digitalWrite(relayPin, LOW);

      unsigned long runTime = millis() - startTime;

      float secondsRun = runTime / 1000.0;
      float gramsDispensed = gramsPerSecond * secondsRun;

      totalGramsStored += gramsDispensed;
      EEPROM.put(EEPROM_ADDRESS, totalGramsStored);

      lcd.clear();
      lcd.setCursor(2, 1);
      lcd.print("Free Run Output");

      lcd.setCursor(8, 2);
      lcd.print(gramsDispensed, 1);
      lcd.print(" g");

      delay(2500);

      countdownStarted = false;
      isPaused = false;

      updateScreen();
      return;
    }

    // --- NORMAL / TIMED GRIND ---
    digitalWrite(ledPin, HIGH);
    digitalWrite(relayPin, HIGH);

    if (!temp15gMode) {
      saveSettings();
    }

    lcd.clear();

    for (float i = grinding; i >= 0; i -= 0.1) {

      delay(62);

      lcd.setCursor(6, 1);
      lcd.print("Grinding ");
      lcd.setCursor(3, 2);
      lcd.print(i, 1);
      lcd.print(" sec ");

      float gramsElapsed = gramsPerSecond * (grinding - i);

      lcd.print(gramsElapsed, 1);
      lcd.setCursor(17, 2);
      lcd.print("g");

      // --- PAUSE FUNCTION ---
      if (digitalRead(instantGrindButtonPin) == LOW) {
        if (millis() - pauseButtonStartTime >= pauseHoldDuration) {
          isPaused = !isPaused;
          while (digitalRead(instantGrindButtonPin) == LOW) {}
        }
      } else {
        pauseButtonStartTime = millis();
      }

      if (isPaused) {
        lcd.clear();
        lcd.setCursor(7, 1);
        lcd.print("PAUSED");

        digitalWrite(ledPin, LOW);
        digitalWrite(relayPin, LOW);

        while (isPaused) {
          if (digitalRead(instantGrindButtonPin) == LOW) {
            if (millis() - pauseButtonStartTime >= pauseHoldDuration) {
              isPaused = !isPaused;
              while (digitalRead(instantGrindButtonPin) == LOW) {}
            }
          } else {
            pauseButtonStartTime = millis();
          }
        }

        lcd.clear();
      } else {
        digitalWrite(ledPin, HIGH);
        digitalWrite(relayPin, HIGH);
      }
    }

    // --- FINISH TIMED GRIND ---
    digitalWrite(ledPin, LOW);
    digitalWrite(relayPin, LOW);

    if (temp15gMode) {
      totalGramsStored += 15.0;
    } else {
      totalGramsStored += totalGrams;
    }

    EEPROM.put(EEPROM_ADDRESS, totalGramsStored);

    lcd.clear();
    lcd.setCursor(3, 1);
    lcd.print("Grams Dispensed");

    lcd.setCursor(7, 2);

    if (temp15gMode) {
      lcd.print(15.0, 1);
    } else {
      lcd.print(totalGrams, 1);
    }

    lcd.print(" g");

    lcd.setCursor(1, 3);
    lcd.print("<Press Menu Knob>");

    grinding = originalGrinding;
    totalGrams = gramsPerSecond * grinding;

    countdownStarted = false;
    isPaused = false;
  }

  while (digitalRead(sw) == HIGH) {
    // wait for press
  }
}

void drinkTemperature() {
  lcd.clear();

  while (digitalRead(settingsButton) == LOW) {
    delay(50);
    lcd.setCursor(2,0);
    lcd.print("Milk Temperature");
    lcd.setCursor(8,2);
    lcd.print(stopMilkC);
    lcd.print(" C");

    if (digitalRead(buttonPin) == LOW) {
      lcd.setCursor(8,2);
      stopMilkC = stopMilkC - 1;
      lcd.print(stopMilkC);
      lcd.print(" C");
    }

    if (digitalRead(instantGrindButtonPin) == LOW) {
      lcd.setCursor(8,2);
      stopMilkC = stopMilkC + 1;
      lcd.print(stopMilkC);
      lcd.print(" C");
    }
  }

  EEPROM.put(finalDrinkTempSave, stopMilkC);
}

Related Posts
